Solar 200 Watt E-Bike Battery Charger
Regular price
$995.00
Electrify Bike Sun200 - 200 Watt Solar Solar Ebike Battery Charger
Charges 36v, 48v, 52v, 60v, and 72v batteries. It’s hard to believe you can take this much charger into the wilderness with you and charge your ebike during your lunch break. This solar panel and charger put out more power than your typical charger that you plug in the wall at home to charge your ebike. Two hundred watts is a lot of juice. That is equivalent to a 4amp 52V or 48V charger. That allows you to maximize your charge in the shortest time possible and do it when you have no other source of power. You can keep riding your ebike while camping, touring, or during any kind of emergency power outage.
More information here.

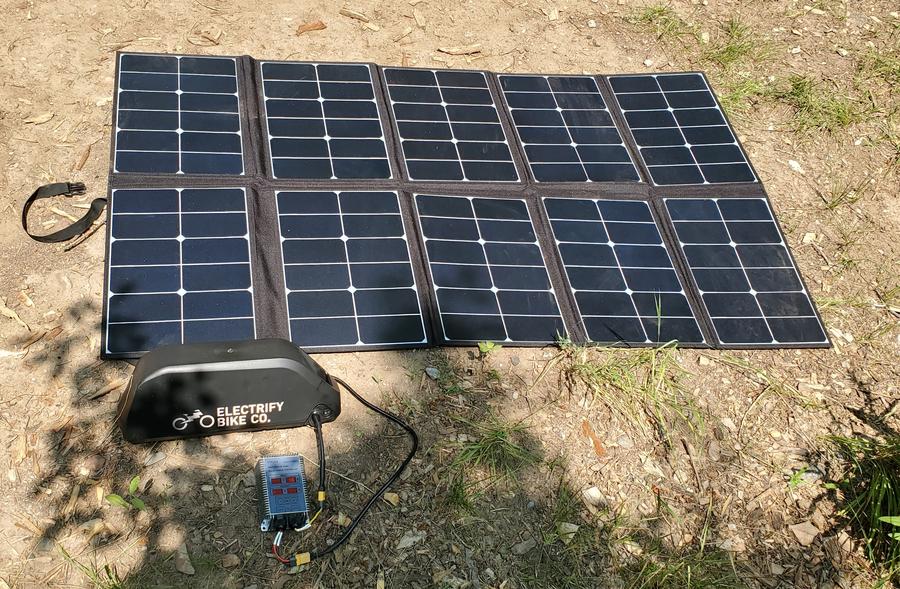

To use it, all you need to do is unfold it in the sun and plug in your battery. Now all you need is some sun and your ebike and you can go anywhere or continue to have transportation during an emergency power outage.

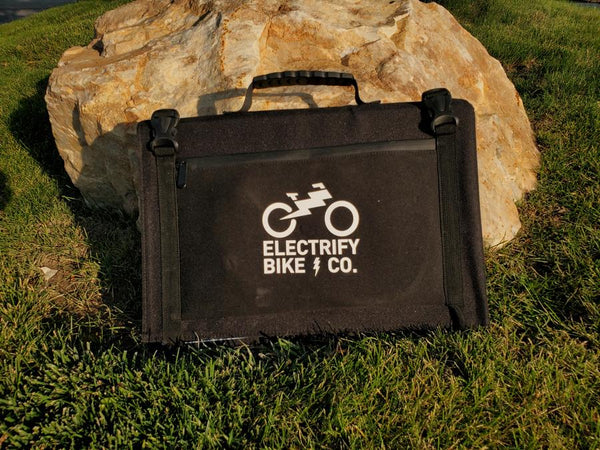

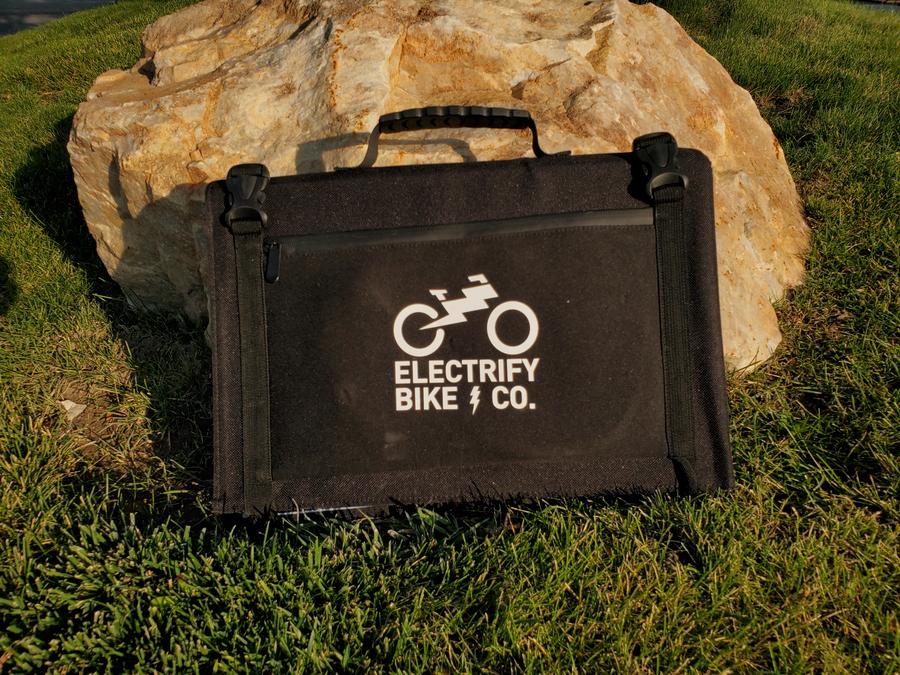

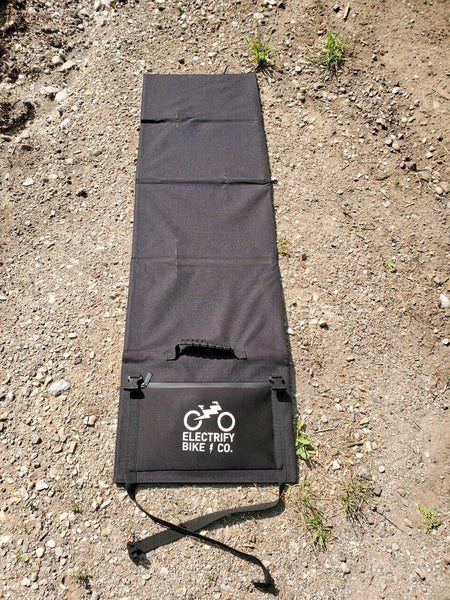

Consisting of ten 20 watt individual panels laid out on a tough 900D blanket, the Sun200 folds up into a tight package less than 2 inches thick. It can go in your backpack, on your rack, bag, or panniers. Remarkably, we were able to get this much solar power in a package that will fit comfortably on a bike. It also features a carrying handle and a pocket to hold the charge controller and any cords you need to connect your battery.
This is the most rugged, lightweight, portable, and powerful solar charger for e-bikes currently on the market. With the flexibility to charge any size battery from 36 to 72 volts, it is future-proof - whatever voltage your future ebike uses, the Sun200 can charge it.
The cells are made by Sunpower, maker of the most efficient, lightweight, and rugged cells available. The efficiency of the Sun200 solar panel is 22.8% which is the highest efficiency on the market.
The Sun200 includes a variable voltage MPPT charge controller. The voltage is variable to charge 36v, 48v, 52v, 60v, and 72-volt batteries as efficiently as possible. It maximizes the current draw from the solar panels and output to the battery as weather and daylight conditions change. The controller can handle 400 watts of power, allowing you to connect two Sun200 panels to capture twice the sunlight. It includes an LED display showing both input voltage and amps and output voltage and amps for continuous readout of solar panel performance and the charge current into the battery pack.
Caution: Charging your battery when temperatures are below freezing can damage your battery.
EBC Sun200 Solar Panel Specifications:
Sunpower solar panel: 200w, 33V, 6A
Backing material: 2 layers polyester 900D
Color: Black
Unfolded size: 1560*820*5mm / 62x32x.2 inch
Folded size: 410*305*45mm / 16x12x1.75 inch
Net weight: 4.5KG / 9.9lbs
EBC Sun200 MPPT Controller Specifications:
Type: MPPT variable voltage step-up
Battery Type: Lithium-Ion
PV open circuit voltage: 18-55v
PV input power: 400 Watts
PV input power starting voltage: 18-55v
PV input tracking voltage: 17-55v
Output to battery voltage: 24-85 (Adjustable for 10S to 20S Li)
Output to battery current: Max 15 amps - current limited
IP Class: IP66
Size: 120*80*40mm / 4.72x3.2x1.6 inch
Weight: 450g / 1lb
